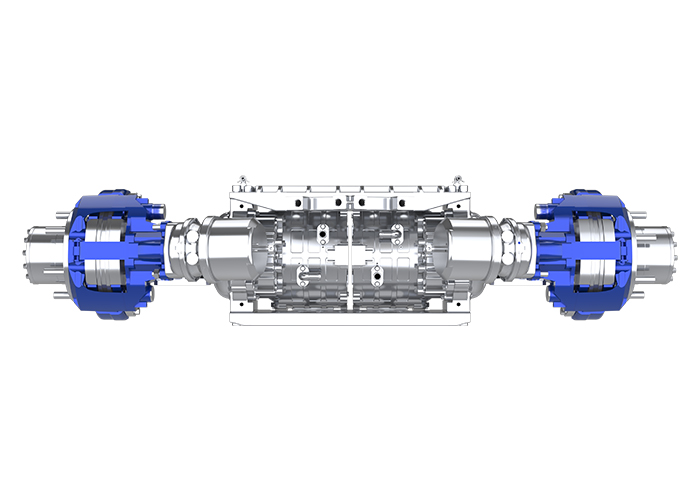

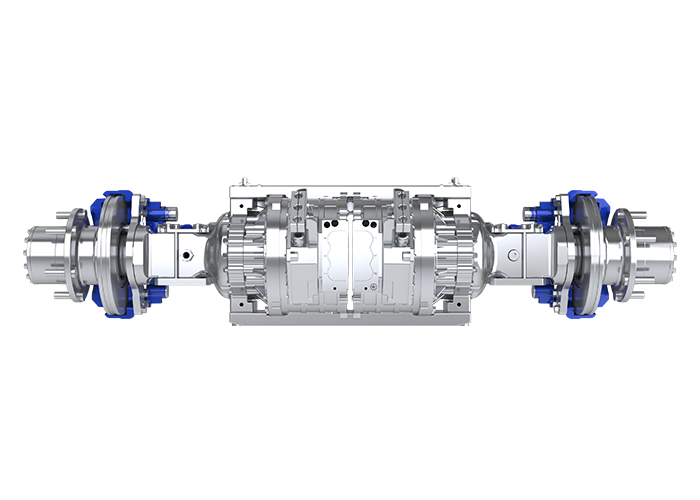

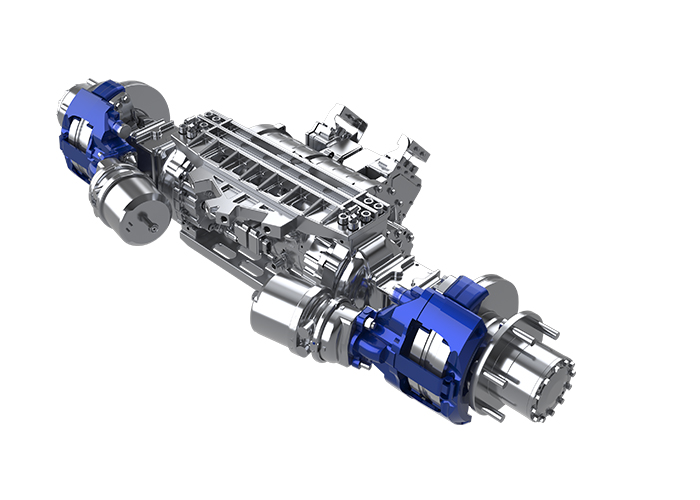

5T Distributed Drive E-axle

EA850F

Our EA850F e-axle is tailor-made for 6-8m premium midibuses, featuring dual-motor redundancy to eliminate breakdown risks and ensure high vehicle availability and operational reliability.

Contact us
View Spec Sheet
EA850F EA850F EA850F EA850F
EA850F EA850F EA850F EA850F

User value

R8MUPS8
Tailor-made
premium midibuses, achieving a highly integrated and precisely adapted chassis.
icon2
Dual-Motor Redundancy Design
If a motor on one side fails, the other side can still drive independently, eliminating the risk of stranding and ensuring high vehicle availability.
R8MUPS9
Extended Tire Life
Electronic differential control effectively reduces tire wear, promising a tire replacement interval of over 80,000 km and significantly cutting operating costs.
icon2
Lightweight Design
Approximately 5-10% weight reduction compared to direct-drive systems, enhancing vehicle range.
icon4
High efficiency
100% regenerative braking energy recovery, reducing overall vehicle energy consumption by approximately 10%.
R8MUPS6
Robust Power
High power and torque output delivering superior dynamic performance.
R8MUPS8
Tailor-made
premium midibuses, achieving a highly integrated and precisely adapted chassis.
icon2
Dual-Motor Redundancy Design
If a motor on one side fails, the other side can still drive independently, eliminating the risk of stranding and ensuring high vehicle availability.
R8MUPS9
Extended Tire Life
Electronic differential control effectively reduces tire wear, promising a tire replacement interval of over 80,000 km and significantly cutting operating costs.
icon2
Lightweight Design
Approximately 5-10% weight reduction compared to direct-drive systems, enhancing vehicle range.
icon4
High efficiency
100% regenerative braking energy recovery, reducing overall vehicle energy consumption by approximately 10%.
R8MUPS6
Robust Power
High power and torque output delivering superior dynamic performance.

Technical Specifications

Item EA850F
Rated axle load (kg) 5000-6000
Maximum output torque (N.m) 2×4272
Rated/peak power (kW) 2×60/120
Brake 17.5-inch air disc brake
Axle assembly weight (kg) 350
IP level IP68
Rated voltage (VDC) 600
Safety software ○ EASR            ○ IESS          ○ DABS

○ Optional

Item EA850F
Rated axle load (kg) 5000-6000
Maximum output torque (N.m) 2×4272
Rated/peak power (kW) 2×60/120
Brake 17.5-inch air disc brake
Axle assembly weight (kg) 350
IP level IP68
Rated voltage (VDC) 600
Safety software ○ EASR            ○ IESS          ○ DABS

○ Optional

Bus

Bus

Tailored for urban and rural transit, this solution covers the full range of 8-18m low-floor buses. The compact wheel-side motor layout enables a true 100% flat interior floor, significantly maximizing standing area and passenger capacity to redefine spatial standards for next-generation public transport.
