Low-floor Electric Portal

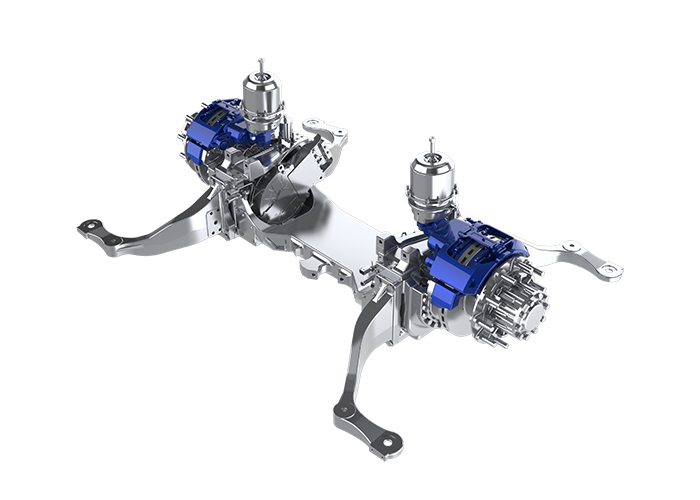

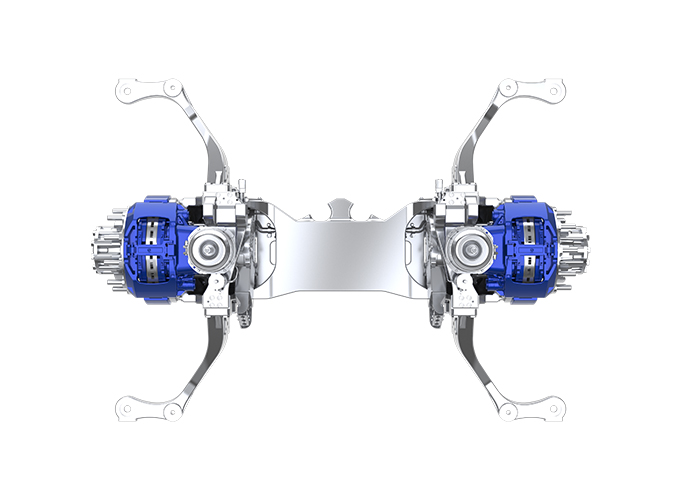

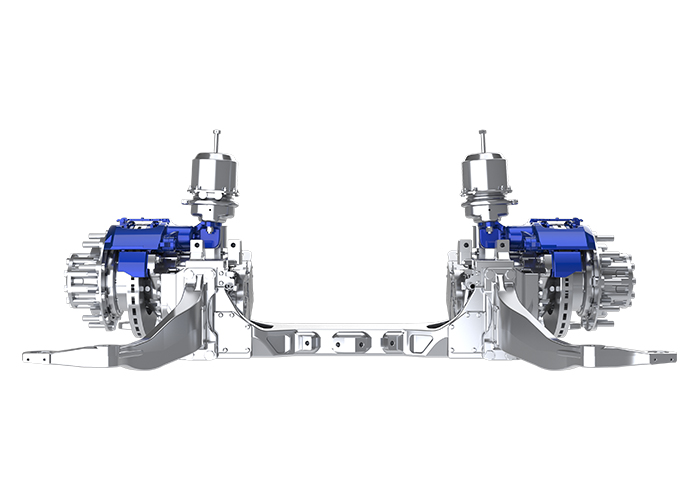

EA1400KB

Our EA1400KB e-axle is engineered for 8-10m low-floor buses, delivering a 770mm ultra-wide aisle and full flat floor to maximize passenger capacity and flow efficiency, helping fleet operators increase revenue and reduce maintenance costs.

Contact us
View Spec Sheet
EA1400K EA1400K EA1400K EA1400K
EA1400K EA1400K EA1400K EA1400K

User value

R8MUPS8
Tailor-made
Deeply tailored for 8-10m low-floor bus models, achieving highly integrated chassis and precise matching.
R8MUPS1
Ultra-Wide Aisle
Achieves 770mm wide aisle and full low-floor design, significantly improving passenger capacity and boarding convenience.
R8MUPS2
Proven Electronic Differential
Mature and reliable electronic differential control with a guaranteed tire life of 100,000 km.
icon4
High efficiency
100% regenerative braking energy recovery, reducing overall vehicle energy consumption by approximately 10%.
R8MUPS3
Lightweight Design
Approximately 5% weight reduction compared to direct-drive systems, enhancing vehicle range.
R8MUPS6
Robust Power
High power and torque output delivering superior dynamic performance.
R8MUPS8
Tailor-made
Deeply tailored for 8-10m low-floor bus models, achieving highly integrated chassis and precise matching.
R8MUPS1
Ultra-Wide Aisle
Achieves 770mm wide aisle and full low-floor design, significantly improving passenger capacity and boarding convenience.
R8MUPS2
Proven Electronic Differential
Mature and reliable electronic differential control with a guaranteed tire life of 100,000 km.
icon4
High efficiency
100% regenerative braking energy recovery, reducing overall vehicle energy consumption by approximately 10%.
R8MUPS3
Lightweight Design
Approximately 5% weight reduction compared to direct-drive systems, enhancing vehicle range.
R8MUPS6
Robust Power
High power and torque output delivering superior dynamic performance.

Technical Specifications

Item EA1400KB
Rated axle load (kg) 10000
Maximum output torque (N.m) 2×7784
Rated/peak power (kW) 2×60/120
Brake 22.5-inch air disc brake
Axle assembly weight (kg) 842
IP level IP68
Rated voltage (VDC) 600
Aisle width (mm) 770
Safety software ○ EASR          ○ IESS        ○ DABS

○ Optional

Item EA1400KB
Rated axle load (kg) 10000
Maximum output torque (N.m) 2×7784
Rated/peak power (kW) 2×60/120
Brake 22.5-inch air disc brake
Axle assembly weight (kg) 842
IP level IP68
Rated voltage (VDC) 600
Aisle width (mm) 770
Safety software ○ EASR          ○ IESS        ○ DABS

○ Optional

Bus

Bus

Tailored for urban and rural transit, this solution covers the full range of 8-18m low-floor buses. The compact wheel-side motor layout enables a true 100% flat interior floor, significantly maximizing standing area and passenger capacity to redefine spatial standards for next-generation public transport.
