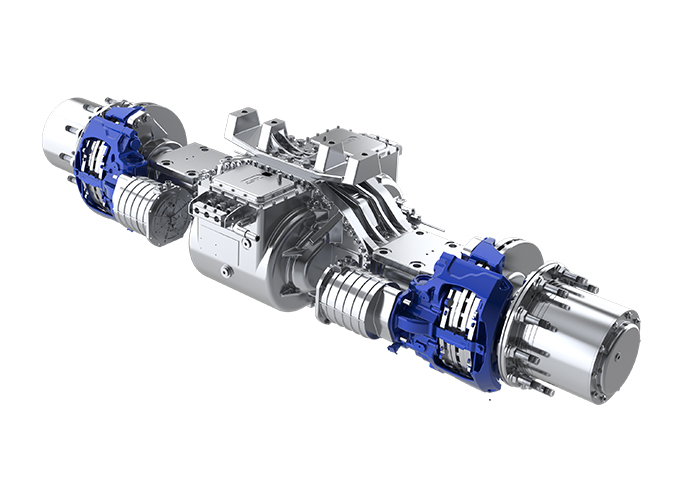

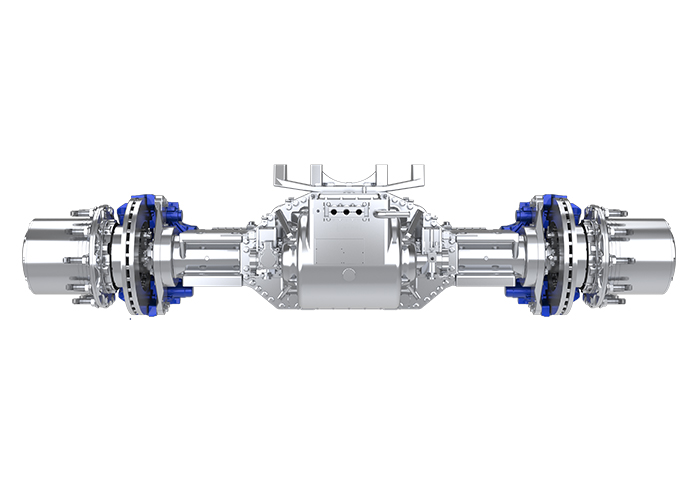

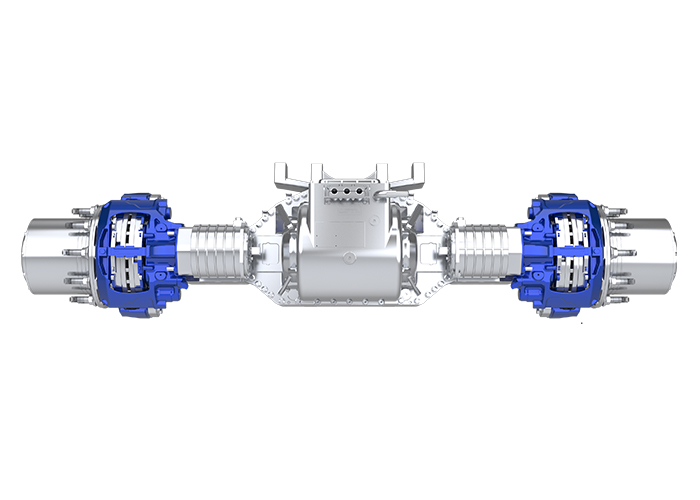

Dual-motor Distributed E-axle

EA5000N

Our EA5000N e-axle features a highly integrated, lightweight design that efficiently replaces conventional drive systems, freeing up chassis space for underfloor battery placement. Combined with intelligent control and high-efficiency energy recuperation, it delivers strong power while enhancing safety and comfort, empowering OEMs to redefine CV platforms.

Contact us
View Spec Sheet
EA5000N EA5000N EA5000N EA5000N
EA5000N EA5000N EA5000N EA5000N

User value

icon1
Space-Saving X-Dimension
X-dimension of 799mm realizes compact layout and space saving.
icon5
Superior Ground Clearance
324mm ground clearance perfectly adapts to construction vehicle scenarios.
icon4
High Integration
Integrates motor, driveshaft, suspension, axle, and brakes – frees up chassis space, enables underfloor batteries, and lowers center of gravity.
icon6
Optimized Regenerative Braking
Electronic ABS prevents wheel lock and improves regenerative braking efficiency.
icon2
Designed for Comfort
Dual-motor architecture combined with an advanced shift control strategy eliminates power interruption during shifting, delivering a quiet and smooth driving experience.
icon3
Energy Recuperation
With optimized gear design, the system achieves 100% energy recuperation efficiency, increasing driving range.
icon1
Space-Saving X-Dimension
X-dimension of 799mm realizes compact layout and space saving.
icon5
Superior Ground Clearance
324mm ground clearance perfectly adapts to construction vehicle scenarios.
icon4
High Integration
Integrates motor, driveshaft, suspension, axle, and brakes – frees up chassis space, enables underfloor batteries, and lowers center of gravity.
icon6
Optimized Regenerative Braking
Electronic ABS prevents wheel lock and improves regenerative braking efficiency.
icon2
Designed for Comfort
Dual-motor architecture combined with an advanced shift control strategy eliminates power interruption during shifting, delivering a quiet and smooth driving experience.
icon3
Energy Recuperation
With optimized gear design, the system achieves 100% energy recuperation efficiency, increasing driving range.

Technical Specifications

Item EA5000N
Motor type Water-cooled motor
Rated axle load (kg) 11500/13000/16000
Maximum output torque (N.m) 2×27262
Rated/peak power (kW) 2×120/240
Brake ○ Air disc brake    ○ Drum brake
Axle assembly weight (kg) 856~950 (Depends on configuration)
IP level IP68
Rated voltage (VDC) 600
Suspension type ○ Air suspension          ○ Leaf spring
Power takeoff ○ Integrated PTO
Safety software ○ EASR          ○ IESS          ○ DABS

○ Optional

Item EA5000N
Motor type Water-cooled motor
Rated axle load (kg) 11500/13000/16000
Maximum output torque (N.m) 2×27262
Rated/peak power (kW) 2×120/240
Brake ○ Air disc brake    ○ Drum brake
Axle assembly weight (kg) 856~950 (Depends on configuration)
IP level IP68
Rated voltage (VDC) 600
Suspension type ○ Air suspension          ○ Leaf spring
Power takeoff ○ Integrated PTO
Safety software ○ EASR          ○ IESS          ○ DABS

○ Optional

Heavy Truck

Heavy Truck

We provide full-scenario electric solutions for tractors, tippers, and sanitation trucks. Built on a highly integrated e-axle chassis, our system delivers the optimal balance of power, efficiency, and comfort.
