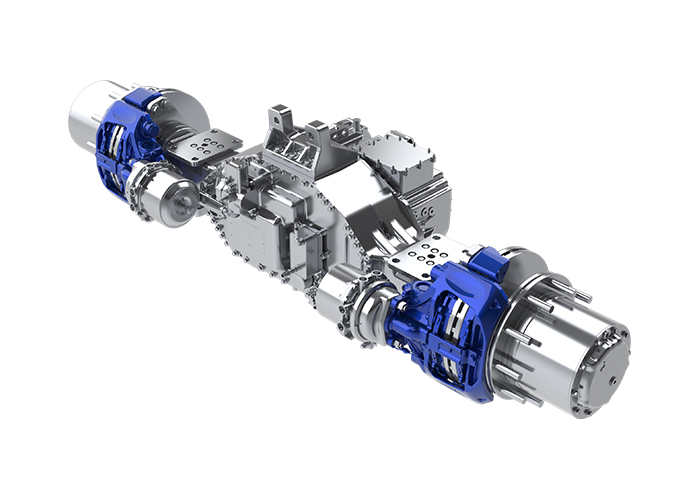

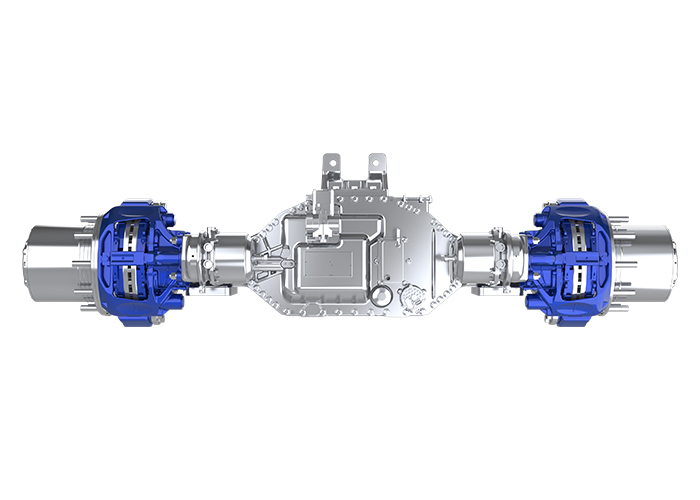

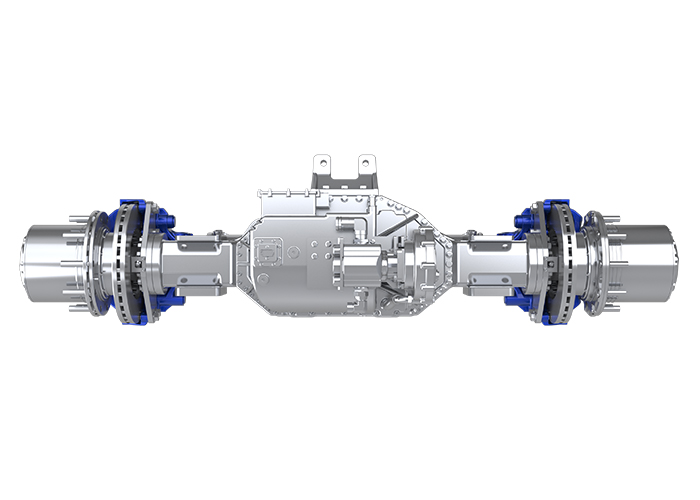

Single-motor Distributed E-axle

EA3800N

Our single-motor e-axle is purpose-built for applications that demand low power and high efficiency. Featuring a single-motor drive architecture, it ensures reliable performance and energy efficiency under normal operating conditions while effectively simplifying the system structure and helping customers control overall vehicle procurement costs. This provides a reliable choice for fleet customers seeking an economical electrification solution.

Contact us
View Spec Sheet
EA3800N EA3800N EA3800N EA3800N
EA3800N EA3800N EA3800N EA3800N

User value

icon1
Space-Saving X-Dimension
X-dimension of 711mm realizes compact layout and space saving.
R8MUPS7
Better suited for sanitation vehicles
An optional power take-off (PTO) is available, making it ideal for sanitation vehicle applications.
icon 01.svg
Reliability
The integrated axle housing and symmetrical structure deliver enhanced reliability.
icon6
Optimized Regenerative Braking
Electronic ABS prevents wheel lock and improves regenerative braking efficiency.
icon2
Designed for Comfort
The middle and rear axles shift independently, with no power interruption during gear changes, ensuring smooth driving.
icon4
High Integration
Integrates motor, driveshaft, suspension, axle, and brakes – frees up chassis space, enables underfloor batteries, and lowers center of gravity.
icon1
Space-Saving X-Dimension
X-dimension of 711mm realizes compact layout and space saving.
R8MUPS7
Better suited for sanitation vehicles
An optional power take-off (PTO) is available, making it ideal for sanitation vehicle applications.
icon 01.svg
Reliability
The integrated axle housing and symmetrical structure deliver enhanced reliability.
icon6
Optimized Regenerative Braking
Electronic ABS prevents wheel lock and improves regenerative braking efficiency.
icon2
Designed for Comfort
The middle and rear axles shift independently, with no power interruption during gear changes, ensuring smooth driving.
icon4
High Integration
Integrates motor, driveshaft, suspension, axle, and brakes – frees up chassis space, enables underfloor batteries, and lowers center of gravity.

Technical Specifications

Item EA3800N
Motor type Oil-cooled motor
Rated axle load (kg) 11500/13000/16000
Maximum output torque (N.m) 38483
Rated/peak power (kW) 200/300 260/350
Brake ○ Air disc brake          ○ drum brake
Axle assembly weight (kg) 780~830 (Depends on configuration)
IP level IP68
Rated voltage (VDC) 600/800
Suspension type ○ Air suspension          ○ Leaf spring
Power takeoff ○ Integrated PTO
Differential lock ○ Mechanical differential lock
Safety software ○ EASR          ○ DABS

○ Optional

Item EA3800N
Motor type Oil-cooled motor
Rated axle load (kg) 11500/13000/16000
Maximum output torque (N.m) 38483
Rated/peak power (kW) 200/300 260/350
Brake ○ Air disc brake          ○ drum brake
Axle assembly weight (kg) 780~830 (Depends on configuration)
IP level IP68
Rated voltage (VDC) 600/800
Suspension type ○ Air suspension          ○ Leaf spring
Power takeoff ○ Integrated PTO
Differential lock ○ Mechanical differential lock
Safety software ○ EASR          ○ DABS

○ Optional

Heavy Truck

Heavy Truck

We provide full-scenario electric solutions for tractors, tippers, and sanitation trucks. Built on a highly integrated e-axle chassis, our system delivers the optimal balance of power, efficiency, and comfort.
