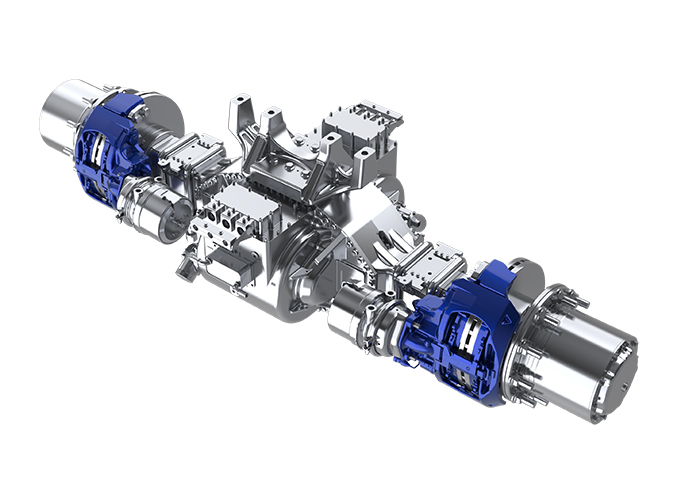

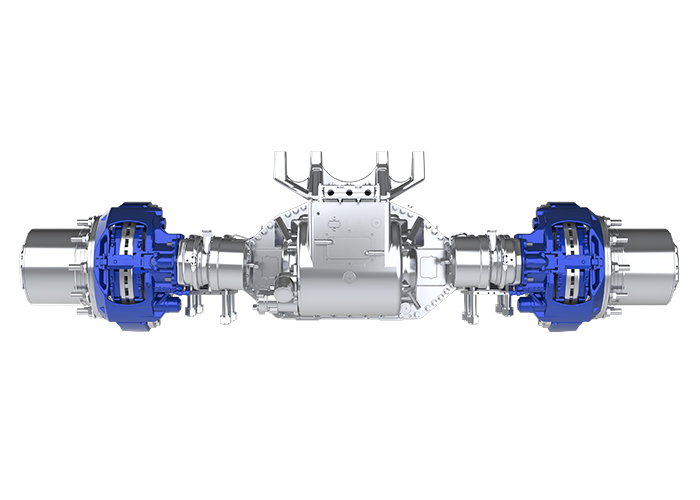

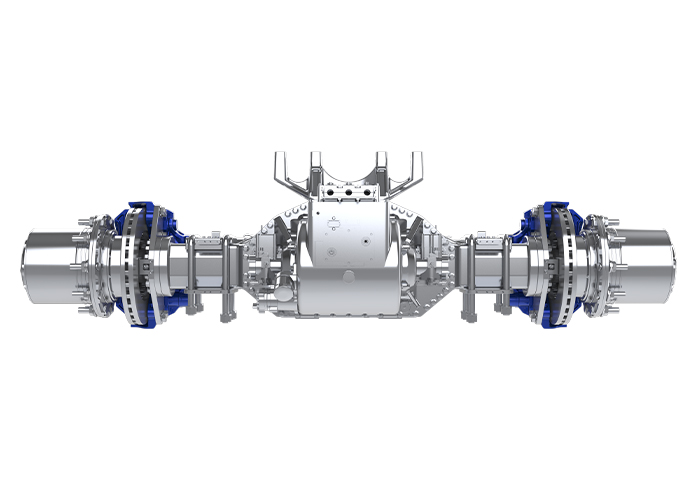

Dual-motor Distributed E-axle

EA4000N

Our EA4000 e-axle, built on full-height technology, delivers even higher efficiency and 800V platform compatibility—further optimizing power, safety, and comfort while enabling OEMs to build more competitive next-generation CV platforms.

Contact us
View Spec Sheet
EA4000N EA4000N EA4000N EA4000N
EA4000N EA4000N EA4000N EA4000N

User value

R8MUPS6
More powerful
higher output power, and compatible with 800V high-voltage platform.
icon 01.svg
Reliability
Integrated axle housing and symmetrical structure provide higher reliability.
icon1
Space-Saving X-Dimension
X-dimension of 799mm realizes compact layout and space saving.
icon5
Superior Ground Clearance
324mm ground clearance perfectly adapts to construction vehicle scenarios.
icon4
High Integration
Integrates motor, driveshaft, suspension, axle, and brakes – frees up chassis space, enables underfloor batteries, and lowers center of gravity.
icon6
Optimized Regenerative Braking
Electronic ABS prevents wheel lock and improves regenerative braking efficiency.
icon2
Designed for Comfort
Dual-motor architecture combined with an advanced shift control strategy eliminates power interruption during shifting, delivering a quiet and smooth driving experience.
icon3
Energy Recuperation
With optimized gear design, the system achieves 100% energy recuperation efficiency, increasing driving range.
R8MUPS6
More powerful
higher output power, and compatible with 800V high-voltage platform.
icon 01.svg
Reliability
Integrated axle housing and symmetrical structure provide higher reliability.
icon1
Space-Saving X-Dimension
X-dimension of 799mm realizes compact layout and space saving.
icon5
Superior Ground Clearance
324mm ground clearance perfectly adapts to construction vehicle scenarios.
icon4
High Integration
Integrates motor, driveshaft, suspension, axle, and brakes – frees up chassis space, enables underfloor batteries, and lowers center of gravity.
icon6
Optimized Regenerative Braking
Electronic ABS prevents wheel lock and improves regenerative braking efficiency.
icon2
Designed for Comfort
Dual-motor architecture combined with an advanced shift control strategy eliminates power interruption during shifting, delivering a quiet and smooth driving experience.
icon3
Energy Recuperation
With optimized gear design, the system achieves 100% energy recuperation efficiency, increasing driving range.

Technical Specifications

Item EA4000N
Motor type Oil-cooled motor
Rated axle load (kg) 11500/13000/16000
Maximum output torque (N.m) 2×22397~25740
Rated/peak power (kW) 2×200/300 2×260/350
Brake ○ Air disc brake          ○ Drum brake
Axle assembly weight (kg) 856~950 (depending on configuration)
IP level IP68
Rated voltage (VDC) 600/800
Suspension type ○ Air suspension          ○ Leaf spring
Power takeoff ○ Integrated PTO
Safety software ○ EASR          ○ IESS          ○ DABS

○ Optional

Item EA4000N
Motor type Oil-cooled motor
Rated axle load (kg) 11500/13000/16000
Maximum output torque (N.m) 2×22397~25740
Rated/peak power (kW) 2×200/300 2×260/350
Brake ○ Air disc brake          ○ Drum brake
Axle assembly weight (kg) 856~950 (depending on configuration)
IP level IP68
Rated voltage (VDC) 600/800
Suspension type ○ Air suspension          ○ Leaf spring
Power takeoff ○ Integrated PTO
Safety software ○ EASR          ○ IESS          ○ DABS

○ Optional

Heavy Truck

Heavy Truck

We provide full-scenario electric solutions for tractors, tippers, and sanitation trucks. Built on a highly integrated e-axle chassis, our system delivers the optimal balance of power, efficiency, and comfort.
